Drawout Type-MD Motor Control Centres

Optional features at Extra Cost.

  • Glands & lugs provided if asked in specifications
  • lndicating lamps trafo operated/lED type.
  • Panel space heater with controlling equipments.
  • Horizontal Busbar - Joint Shrouds of FRP.
  • Heat run Test.

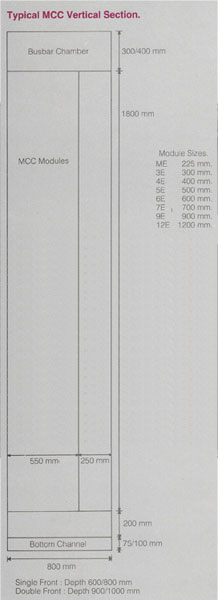

  • 900 mm Vertical frames for bigger wireways.
  • 2.5/2 mm construction, drip-proof top covers.

Typical Spares Details

  • 6 way sliding Terminal fixed SQE 107
  • 6 way sliding Terminal moving SQE 106
  • Rack & Pinion Mechanism set SQE 901 A/B
  • Handle for rack & Pinion Mechanism SQE 902
  • Telescopic Rail with wing nut SQE 903 L/R
  • Safety Shutter Plate SQE904
  • Male Female Power Contact set
    A. 125A SQE 905A/B
    B. 25OA SQE 9O6A/B
    C. 400A SQE 907A/B
    D. 60OA SQE 9O8A/B
  • Scraping earth contact fixed SQE 91O
  • contact moving SQE 909
  • Door cut out gasket SQE 911 A/B
  • Spring loaded nut for door knob. SQE 912


Special Features

  • ELECMECH Drawout MCC designs are backed by excellent field performance of more than 25 years.

  • Outgoing Power & Control terminations are provided in cable- ways to enable maintenance and inspection of termination by opening cable-way hinged doors. Cupal Sheets used between Cu/Ai joints,

  • Large sized trolleys are provided with additional fastening bolts for uniform contacts (Bolts A & B)

  • Dies, tools and Matters for manufacturing, 100% interchangeable reliable systems.

  • Special QAP for incoming material checks and 100% testing of components as per technical parameters.

  • Final "As-built" drawings GA, SLDS, BOM, etc-4 Sets As document OR number of sets as per specifications.

Safety and Quality Concept

  • Completely shrouded Busbars, falling tools shrouds,Live terminal shrouds, tested earth system at CPRI, IP.54 Enclosure Protection.

  • 100% incoming material checks as standard QAP requirements. Periodical heat-run tests on typical Busbars arrangement.Inhouse test facilities for Heat-run test upto 3200Amps.

  • Regular meetings with reputed component manufacturers to discuss their products for technical shortcomings and improvements.

  • Highly trained engineers and technicians for correct application of components.

  • Fully drawout PMCC/MCCs now operating since 25 years in various large industries without any major problems.

  • Approved by major consultants & Inspection Agencies EIL, NTPC, DCPL, TCE, UHDE, Powergas, H&O, Dalals,H.J. Associates, ICB, FACT, BHEL, PH Padhye Associates, MECON M.N. Dastoor,

  • PMCC/MCCs supplied to Cement, Paper, Chemicals,Thermal Powerstations, Petrochemicals, Engineering Industries, Textiles, Electricity,boards, etc.

  • R.& D. section. Periodical testing & checkings for improvements.
