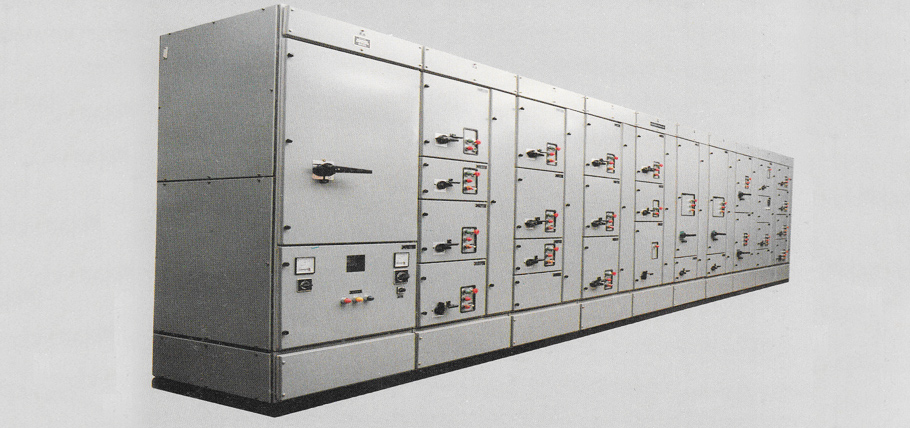

Drawout Type-MD Motor Control Centres

Construction Features

  • Floor mounting,modular,construction,dust & verminproof designed to degree of Enclosure Protection,IP 42/52/54.

  • Vertical Frames 2mm CR/HR MS, Doors & Covers 1.6 mm CR,Bottom channel 3 mm,Gland Plate 2.5/3 mm.
  • Single Front or Double Front
  • Extensible on both sides.
  • Rubber Gaskets between frames and at doors, covers,cutouts etc to achieve Enclosure protection IP-54.
  • Suitable for lndoor installations.
  • Special,double-door outdoor design with canopy also available.

Busbars & Busbar supports

  • Segregated Busbar Chamber at top or bottom.
  • Busbar aluminium E91 E grade, rectangle sections.
  • Busbar System designed on basis of continous current ratings and fault-withstand capacity. Considering allowable temperature rise as per 1S-8623 or as per specifications.
  • Busbar Supports are of resin cast/SMC/DMC/ Material
  • Busbar System 3 phase 3 wire or 3 phase 4wire.
  • Generally Busbars are covered with heat shrinkable PVC sleeves.
